Instruction - 13x Bolex Video Assist

Bolex 13X viewfinder adapter to CCTV HD-SDI, Camera with 2.8-12mm Lens

13x Bolex Video Assist

bolfix

Gently pull the rubber eyecup away from the camera viewfinder. Avoid tools, twisting, or force.

bolfix

Set the diopter to the central position.

bolfix
  1. Position the adapter securely.
  2. Do not tighten the clamp-on adapter.
bolfix

Place the video assist camera in place.

If you have the first version, adjust the clamp using the provided shims (0.05-0.10).

For the later version, simply tighten the nylon screw to adjust the clamp, but handle the nylon screws carefully.

bolfix

Supply the camera with 12V DC (2.1mm) (±10%).

While a 12V-regulated cable is recommended for optimal performance, the camera can function when connected directly to a power source with a maximum voltage of 14.4V. There is no guarantee of consistent performance or long-term reliability when using unregulated power sources.

bolfix

Depending on your video camera, connect the video assist camera to your monitor using either an SDI or HDMI cable.

bolfix
  1. Adjust the video assist camera lens to the telephoto position.
  2. Secure the telephoto position by tightening the screw located on the lens.
  3. Fully open the aperture using the aperture ring.
bolfix

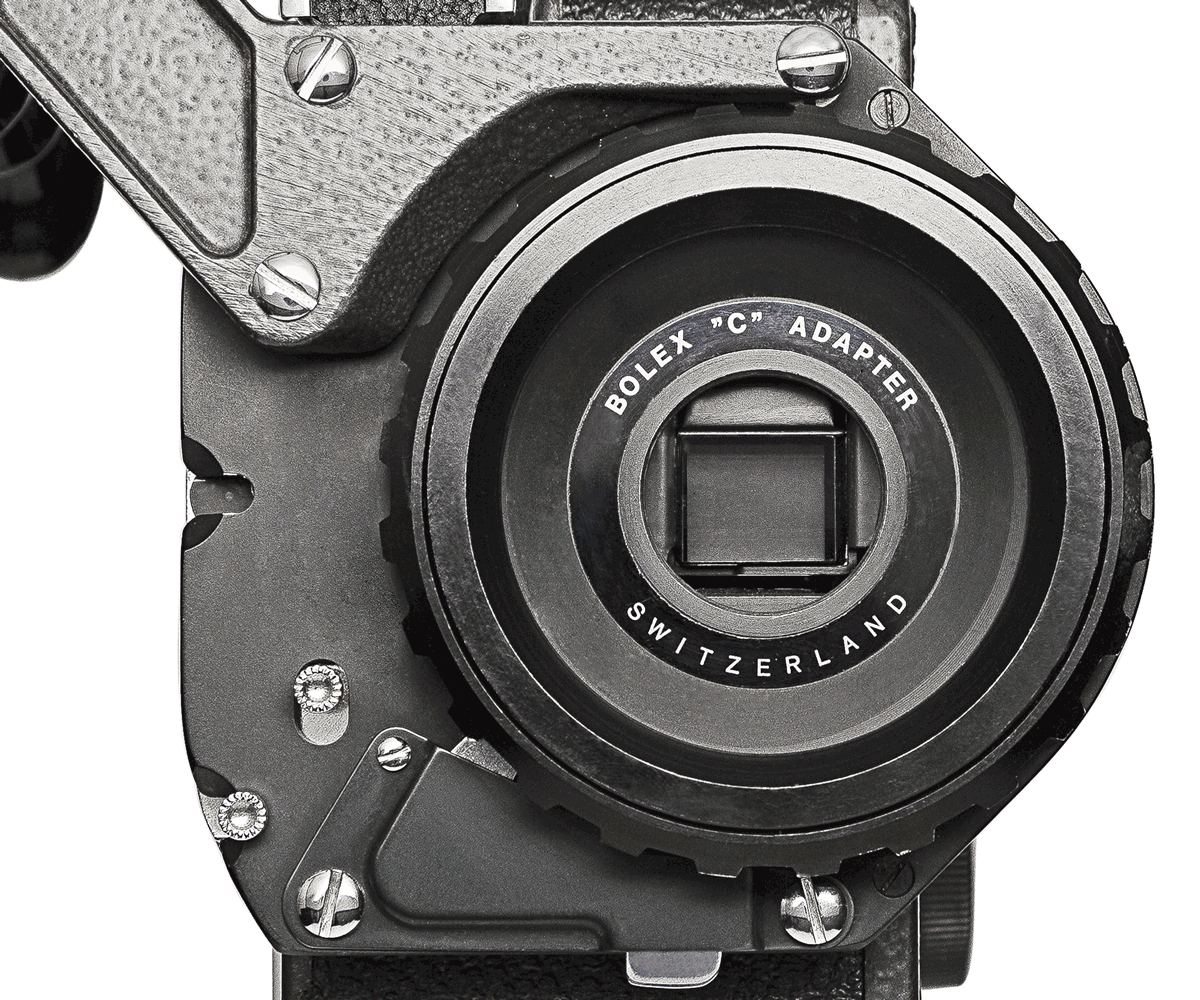

Remove the lens from the turret or the bayonet mount of your Bolex camera. Ensure you don't touch the Bolex prism with your fingers.

bolfix

Using your monitor, adjust the focus to the bolex ground glass texture.

bolfix

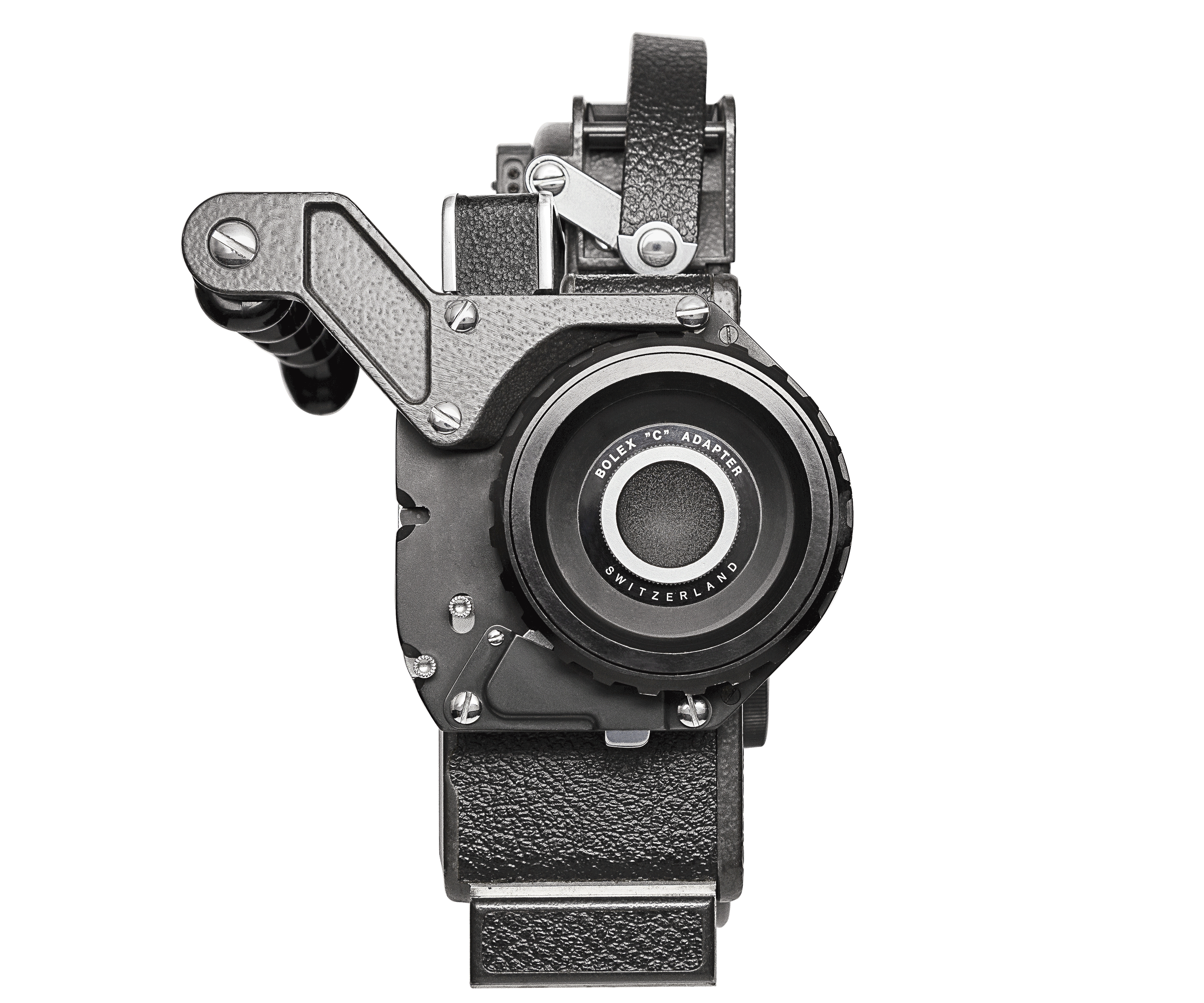

Attach the lens to your Bolex camera.

bolfix

Lastly, tighten the clamp-on adapter to ensure the secure attachment of the video assist to the Bolex camera.

Ensure the resolution of the video assist remains at 1920x1080, as changing it may cause connected devices not to recognize the signal.
