10x Bolex Video Assist

1. Position the adapter securely.
2. Do not tighten the clamp-on adapter.

Use a flat screwdriver to securely fasten the two plastic screws, effectively locking the adapter onto the Bolex viewfinder.

Place the video assist camera in place.

Supply the camera with 12V DC (2.1mm) (±10%).

1. Adjust the video assist camera lens to the telephoto position.
2. Secure the telephoto position by tightening the screw located on the lens.
3. Fully open the aperture using the aperture ring.

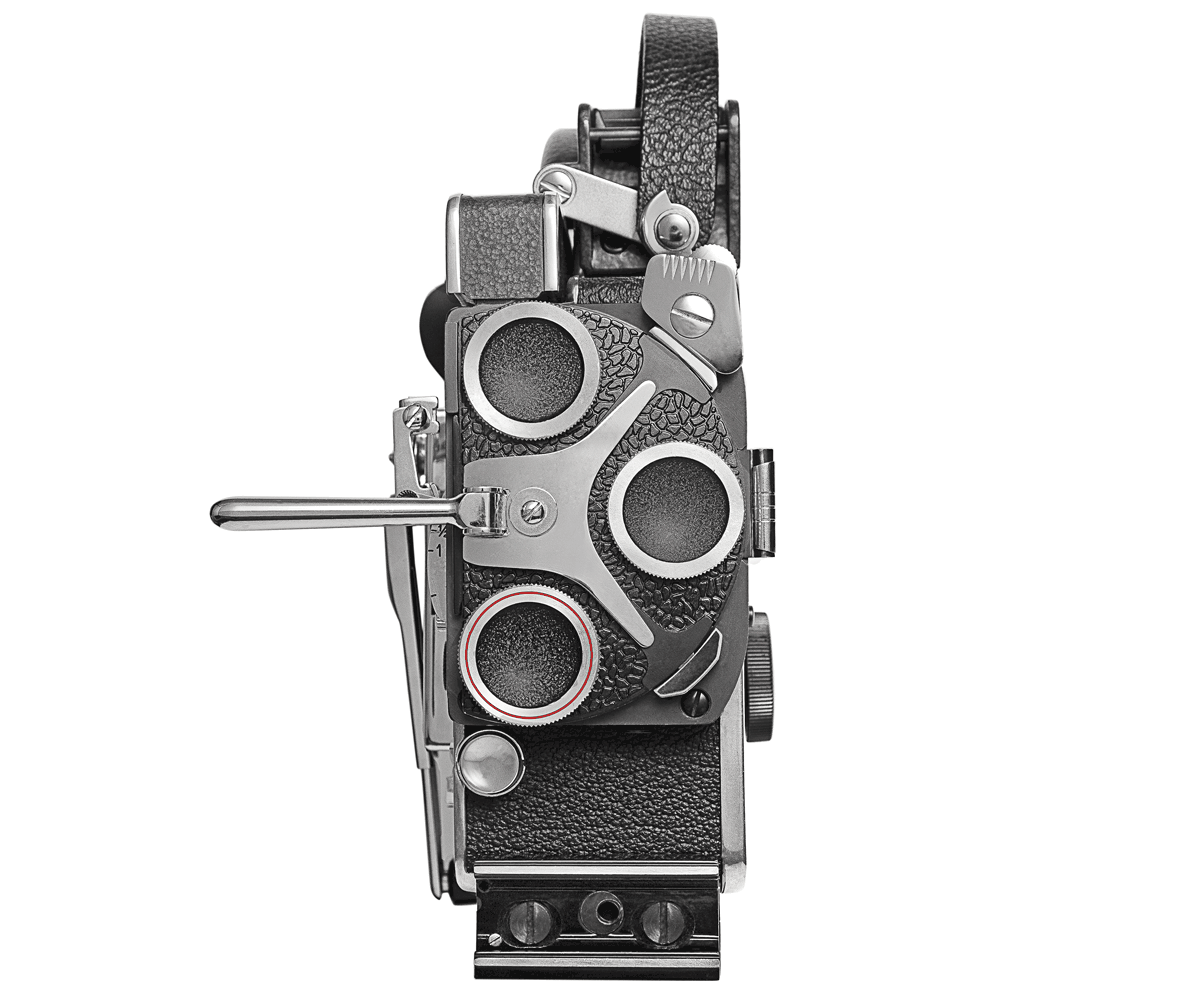

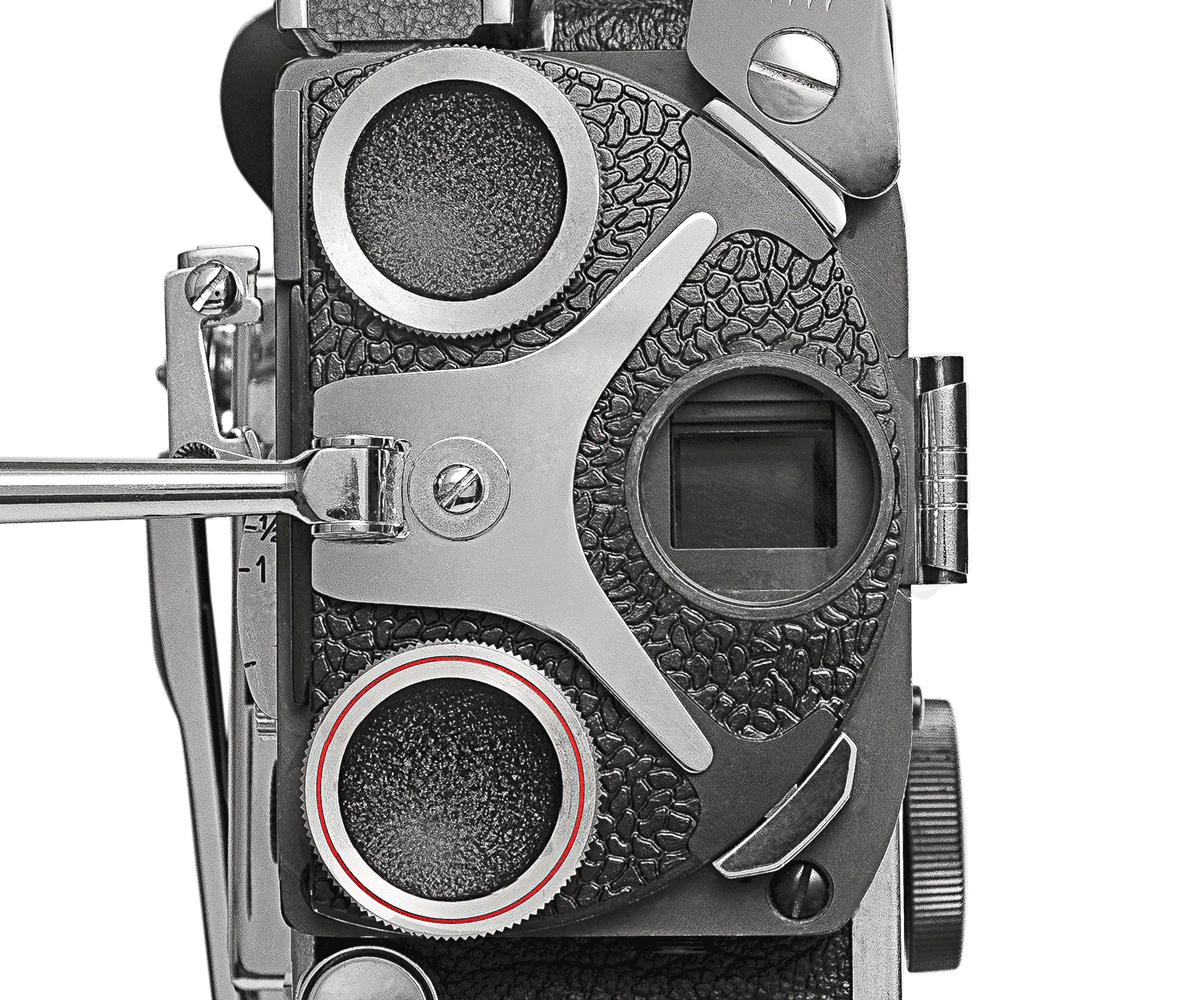

Remove the lens from the turret or the bayonet mount of your Bolex camera. Ensure you don't touch the Bolex prism with your fingers.

Attach the lens to your Bolex camera.

Lastly, tighten the clamp-on adapter to ensure the secure attachment of the video assist to the Bolex camera.
